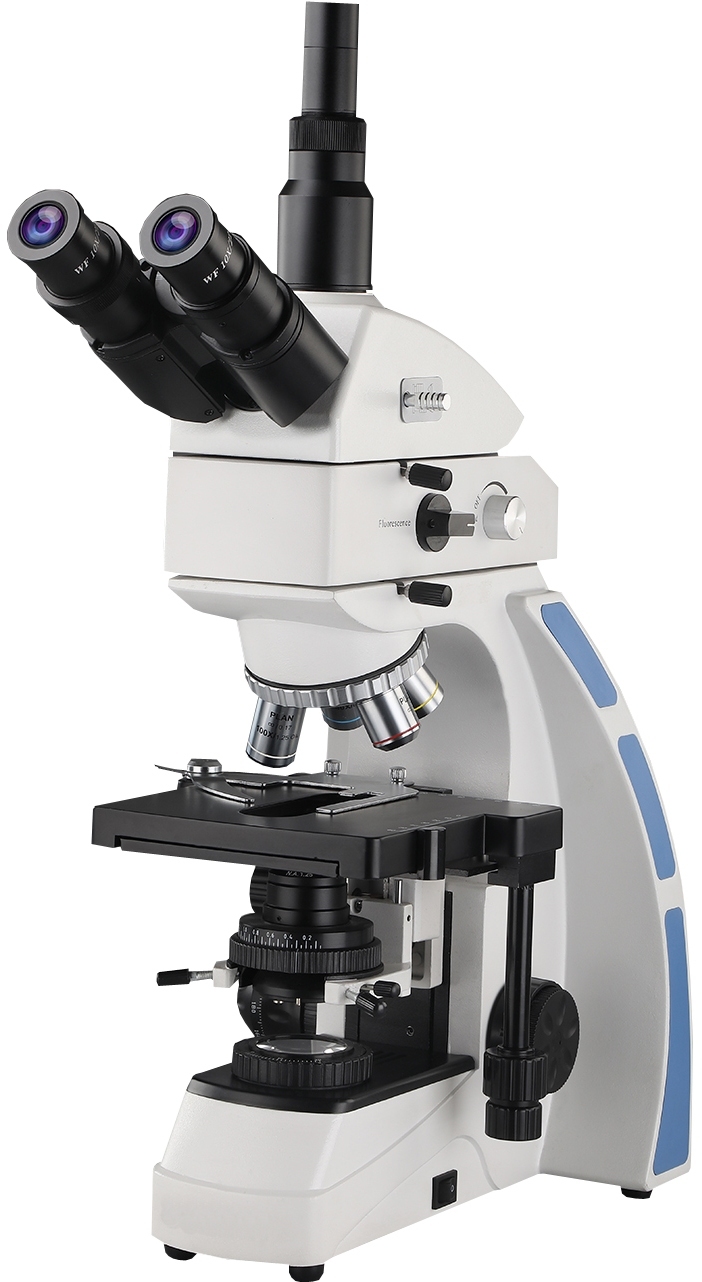

Epi-fluorescence Microscope
Epi-fluorescence Microscope
Product Description

TECHNICAL SPECIFICATIONS:

Stand: Stable & Sturdy stand with well-contoured modular base, corrosion resistant paint, anti-fungus treated.

Observation Head: Siedentopf Trinocular observation head inclined at 30o and 360o rotatable. Diopter adjustment ring on ocular tube. Interpupillary distance from 53 to 75mm.

Eyepiece: Wide Field Eyepiece 10x (PAIRED) FOV 22mm anti-fungal and with eyeguards.

Nosepiece: Reverse angle quadruple (4-position) nosepiece revolves on ball bearing (tilted backwards). Soft rubber knurled grip on nosepiece.

Fluorescent Infinity Plan Achromatic Objectives

Plan FL Fluorescent objective 4x/ 0.10.

Plan FL Fluorescent objective 10x/ 0.25.

Plan FL Fluorescent objective 40x/ 0.65.

Plan FL Fluorescent objective 100x/ 1.25

Stage : Double layer graduated mechanical rectangular stage with Size 210mmx140mm (Better), cross travel 75(X) x 50(Y) mm on ball bearing co-axial controls, driven right and spring clip specimen holder, on left.

Focusing : Low position co-axial coarse and fine focusing control on ball bearing guide ways with pre focusing lever & tension adjustment ring.

Condenser : Sub-stage ABBE condenser center able, NA 0.9/1.25 with aspheric lens.

EPI Fluorescent Attachment : The Epi-illumination is through LED illumination. The Fluorescent light spectrum range 420mm 650mm

One exciting light waves B (blue light)

Comprising of : Exciting filter (EX) comprising of - Blue light (EX-490)

Color Separation Prism (DM) comprising of - Blue Light (BA530)

Position of ordinary transmission light (Central)

ILLUMINATION : Illumination Box with LED lamp, Power Supply Unit 220 Volt Orange coloured Plastic screen to safeguard the Operator from UV light.

POWER : Universal power supply (AC input 85V~265V, 50/60 Hz).

Standard Accessories : Packed in Moulded STYROFOAM box with Instruction manual, cleaning cloth, dust cover, mains cable.

Warranty Information

1 Year

Optional Accessories:

WF 20v FOV 16mm.

Provision for extra filter block UV & V
