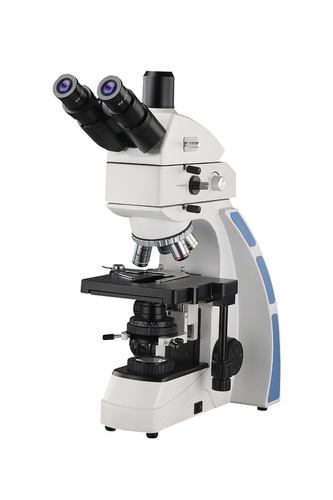

Fluorescence Trinocular Research Microscope

home
Fluorescence Trinocular Research Microscope
Fluorescence Trinocular Research Microscope
Product Description

TECHNICAL SPECIFICATIONS

  • Stand : Single mold sturdy stand with anti rust materials. Extended base for better stability.
  • Observation Head : TRINOCULAR observation head inclined at 30o and 360 o rotatable. Diopter adjustment ring on ocular tube interpupillary distance from55 to 75mm.
  • Eyepiece : Wide Field Eyepiece 10x (PAIRED) FOV 22mm anti-fungal with diopter adjustment.
  • Nosepiece : Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece.

Objectives INFINITY CORRECTED

  • Plan Achromatic objective 4x.
  • Plan Achromatic objective 10x.
  • Plan Achromatic objective 40x (SL).
  • Plan Achromatic objective 100x (SL) Oil Immersion.
  • Stage : Mechanical stage with Size 145mmx142mm, supported on ball bearing guide ways and having low positioned co-axial controls for stage movement.
  • Focusing : Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring and rubber tubes for excellent grip. The slow motion has 1DIV=0.002mm.
  • Condenser : Abbe condenser NA 1.25 with iris diaphragm.
  • Illumination : Built-in base illumination system incorporates LED Lamp , AMPS and intensity Control knob.

Filter

  • B Excitation Standard
  • G Excitation Standard
  • V Excitation Standard
  • UV Excitation Standard

Light Source : Transmitted light source: 3W LED bulb integrated field diaphragm. Epi-fluorescence illumination through 100 watt mercury vapour lamp.

Packaging contents : Fuse Tube, Power Cord, Instruction Manual, Dust Cover, STYROFOAM molded box.

Warranty Information

  • 2 Years parts.
  • 1 year Electronics.
