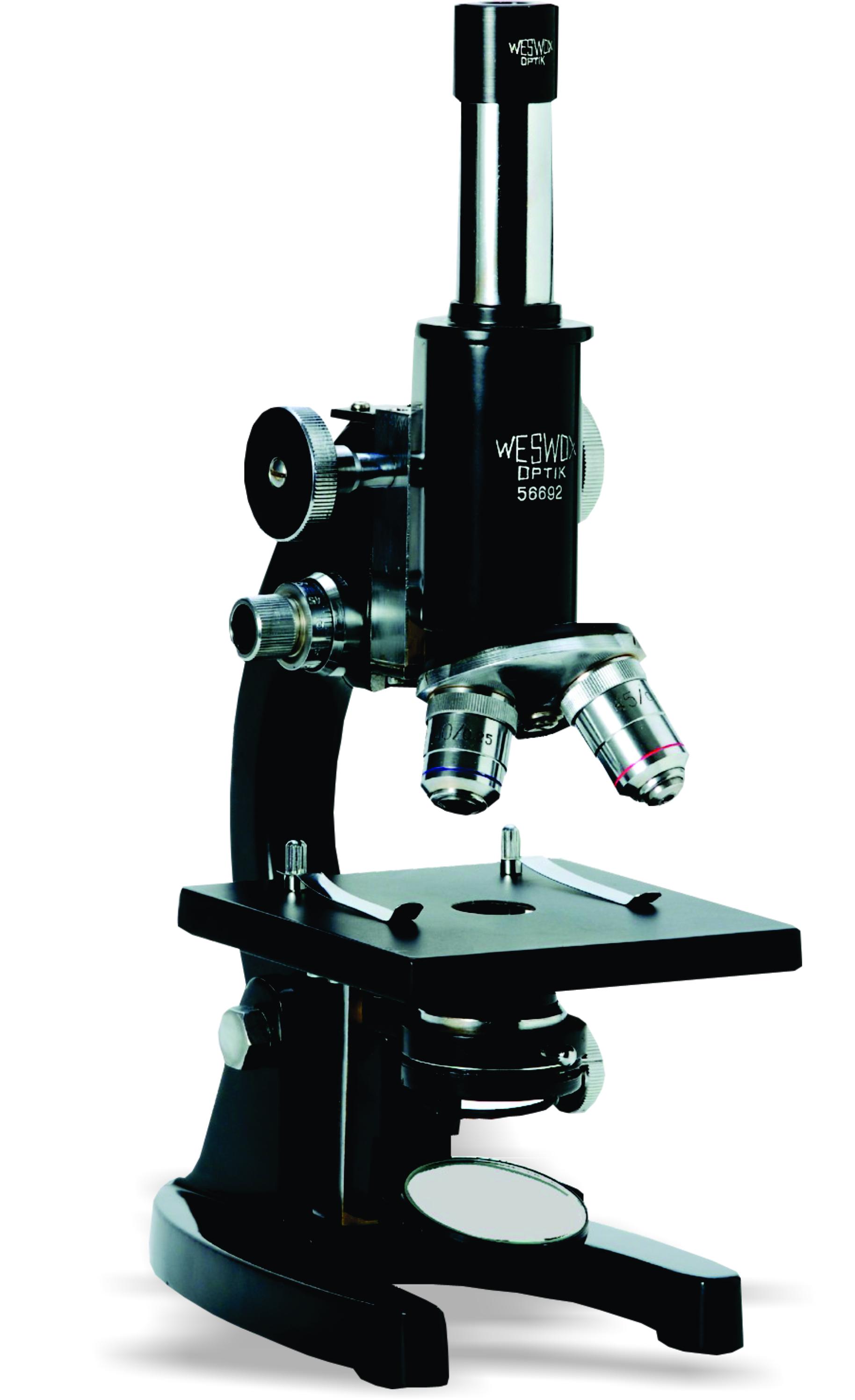

Student Compound Microscope

Student Compound Microscope

TECHNICAL SPECIFICATIONS:

Body : MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90o assembled from DIE-CAST parts.

Viewing Tube: MECHANICAL tube of length 160+1mm.

Eyepiece: WESWOX WF10x & H15x.

Nosepiece: TRIPLE revolving nosepiece with positive centering and click stop.

Objectives: weswox 10x & 45x (SL).

Stage: FIXED square stage of size 120mm X 120mm with Phosphorus stage clips.

Focusing: RACK AND PINION knob provided for sensitive focusing.

Knobs: SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses.

Condenser :TWO LENS ABBE condenser NA 1.25 with rack & pinion movement and swing-out filter holder.

Illumination: STANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp. (Optional)

Magnification: 100x-675x.

Packaging Contents: Packed in shockproof Styrofoam molded box having provision for placing eye pieces and objectives and dust cover.
