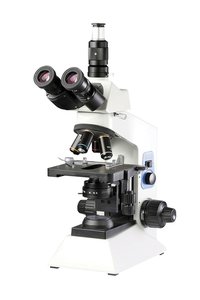

Trinocular Research Microscope

home
Trinocular Research Microscope
Trinocular Research Microscope
Product Description

STAND : Single mold sturdy stand with anti rust materials. Extended base for better stability.

OBSERVATION HEAD : Siedentopf Trinocular 30o inclined, 360 o rotatable. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity.

EYEPIECES : EWF Eyepiece 10x (PAIRED) FOV 22mm.

NOSEPIECE : Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece.

OBJECTIVES: Infinity Plan Achromatic, Anti fungus treated objectives: 4x/0.10, 10x/0.25, 40x(SL)/0.65, 100x(SL, Oil)/1.25. Infinity Plan Phase Achromatic, objectives: 4x/0.10, 10x/0.25, 40x(SL)/0.65, 100x(SL, Oil)/1.25.

FOCUSING : Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm.

STAGE : Reckless Ceramic coated Mechanical stage Size 140mmx132mm, supported on ball bearing guide ways and having low positioned co-axial controls for stage movement. Cross movement 55mmX 75mm.

CONDENSER : Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Turret condenser  with four positions for phase contrast objectives and bright field position for bright field microscopy, adjustable iris diaphragm and swing out filter holder.

ILLUMINATION : Incorporates 3W LED lamp with adjustable iris diaphragm.

POWER : Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant.

PACKAGING CONTENT : Blue filter, STYRO FOAM Molded pack
