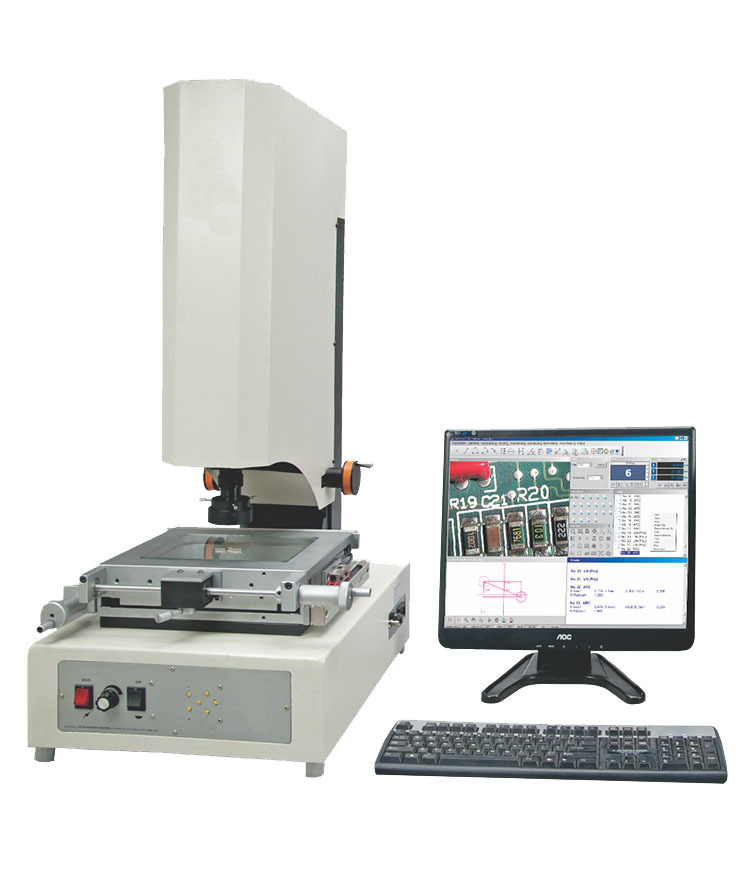

Vision Measuring Microscope

Product Description

Vision Measuring Microscope

Features:

Highly precise metal base and column.

Superior measurement accuracy and repeatability for tight tolerance application.

Automatic video edge detection.

High resolution parafocal zoom lens.

Flat Field high resolution optics for sharp uniform images

Unmatched illumination flexibility for difficult measurements.

Powerful, flexible software for programmability.

Advanced mechanical design resulting in high speed & accuracy.

Manual operation with quick-moving stage.

SPECIFICATIONS :-

Model No:         WVIM -300 CNCWSVI-400-3D       WVIM-500-CNC

Software                      QC-300   MSU-3DPro           QC-5300

Measuring Range Standard     150mm X 100mm X 100mm

Measuring Range Optional      X-Axis upto 500mm, Y-Axis upto 400mm, Z-Axis upto 300mm

Resolution           0.005 / 0.001 / 0.0005 / 0.0001 mm

Linear Accuracy   (3+L/200)micron

Repeatability           +/- (0.002) mm

Vision           1/3" High Resolution CCD Camera

Magnification           Optical Magnification 0.7x - 4.5x & Magnification on monitor 35x - 225x

Video Edge Detection   Standard

Optional Hardware           PC + 17" TFT Monitor

Illumination Surface   Fibre Optic / LED

Illumination Contour   Halogen Lamp / LED

Operation           Manual with Quick Release Knob

Base Platform & Column   Metal Base

Platform load capacity  15 kg

Power Supply           220-240 V + /- 5%, 50/60 HZ

Motion Control through Joystick Optional

Programmable Light Control        Optional

Touch Probe                Optional

Non-Linear Error Correction     Optional            Standard       Optional

Auto Focus               Optional
